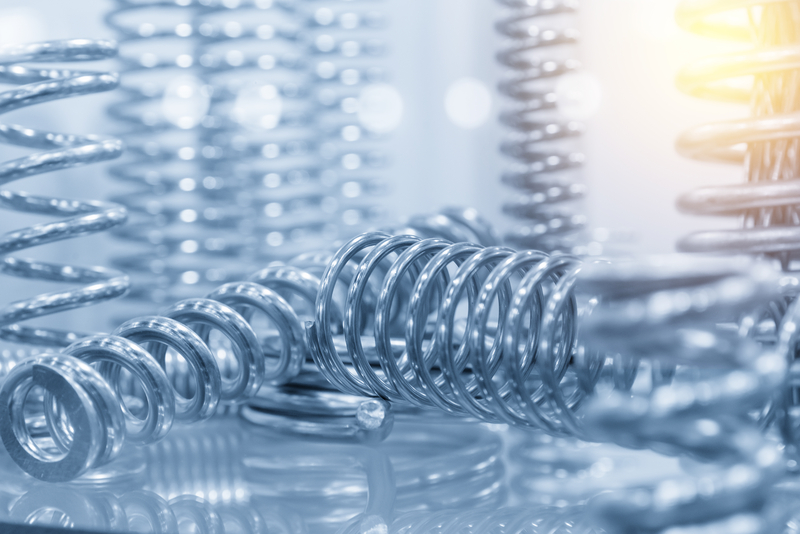

Compression springs are distinct from other springs, such as torsion springs and garter springs; therefore, it's important to establish precisely what they are right away. Compression springs are helical open-coil springs that provide axial resistance to compressive forces. Compression springs absorb stored energy when they expand; therefore, they're commonly fitted over rods or into circular holes.
If you apply additional force to the spring, it will have to work harder to return to its original height.
There are several variations in the construction of compression springs. Compression springs come in various shapes and sizes, including conical, hourglass, and barrel, and each of these shapes and sizes serves a specific purpose. Because of this, picking the appropriate one for the job at hand is essential to guarantee the best possible functionality of the machine or object that the spring is in.
Okay, then, what are some examples of common configurations for compression springs?
Concave (or hourglass-shaped) springs are narrower in the middle than at each end. They're employed in situations requiring a low solid height, and their hourglass shape makes them ideal.
On the other hand, barrel springs, also known as convex springs, have a smaller diameter at each end and a bigger diameter in the middle of the spring. They are one of the most common compression springs used to either resist compression forces or store energy. They are common in the consumer products and automotive industries, among other places.
Each coil of a conical spring rests entirely or partially into the coil next to it, depending on the degree to which the spring is tapered at its smaller end. Since their height is intended to be lower than conventional springs, they can provide a nearly constant spring rate (changing stiffness) while still being structurally solid.
Heavy-duty springs that store mechanical energy are known as mechanical springs. These springs are designed to be compressed as well as stretched.
Magazine springs have rectangular or oval-shaped coils and are put inside the mag of a weapon. Because of this, they are often used in the military and defence industries.
Among the many parts that go into making a car, bespoke compression springs serve various functions to ensure the vehicle's safe and efficient operation. These springs are designed to maintain a distance between two objects by storing potential energy gained during compression and releasing it during the spring's expansion.
In the automobile sector, compression springs are employed in the following applications:
Because compression springs are made to precise dimensions, they are often used in automobile applications that require the spring to be wrapped around a shaft or inserted into a tight space. When the spring is vertical, the close winding at both ends keeps it within a predetermined range of tolerances.
Compression springs are essential to the functioning a vehicle's suspension because of their role in shock absorption. Compression springs are responsible for the smooth and comfortable ride a driver enjoys, regardless of how bumpy the track surface may be.
The frequency of these springs remains constant and consistent. The spring provides a stopping force during compression at the point where each coil has reached its lowest point. The result is a greater attenuation of noise and vibrations. Because of the huge widths of their coils, tapered compression springs are ideal for this use. These springs can dampen the excessive amplitudes of vibration typical of spring-based suspensions.
Compression springs allow for a comfortable ride and stable sitting, even over bumps in the road. You can find many different kinds of compression springs in the seating configuration of a car, and these springs are selected based on the make and design of the automobile.
A vehicle's exhaust valves rely on compression springs to open and close properly. These springs keep the exhaust valves opening and closing consistently, allowing the engine to run smoothly at any rpm.
When the exhaust valves stop working correctly, you can be sure it's because the compression spring gave up. Because of this, the engine may lose power and misfire. When it strikes the piston, it has the potential to bend the valves, which in turn causes damage to the engine.
Compression springs are employed in many other places in an automobile, including the transmission hose, gasoline panels, trunk lids, and engine covers. Before using springs for any purpose, one must always ensure that their quality has not been compromised.

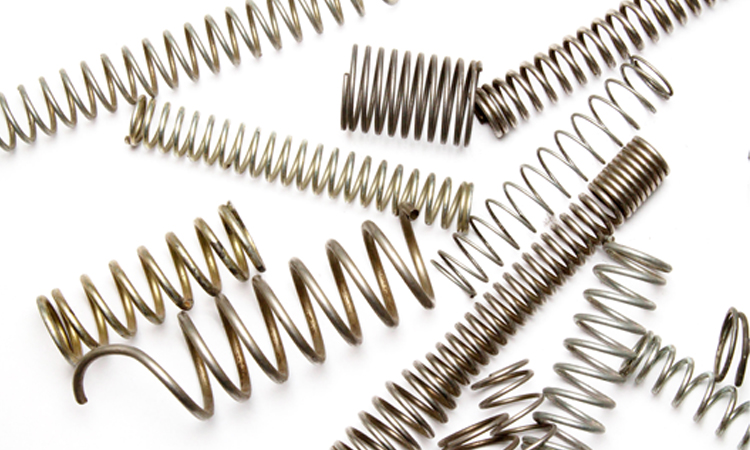

Springs serve as solutions for several of the most difficult applications across various industries. A compression spring is known as an open coil helical spring that can resist the axial compressive force. Compression springs are typically wound with a constant diameter and in various shapes, such as convex, conical, and concave depending on the application.
They can be utilized to store energy or to resist compressive stress. Compression springs are utilized in various applications and come in various forms that fit into a few basic categories. Compression springs provide the same advantages regardless of shape or application, making them a clear industry leader.
Compression spring uses include:
Most manufacturers cannot produce cars without several compression springs, which are exceedingly tough. In automobiles, compression springs are utilized in various components, including hoses, suspension, and even the seats. Compression springs are used in the seats to help them adjust to the body and offer comfort. Naturally, several sizes and forms are available to accommodate the wide range of uses for car compression springs.
In the past, springs are necessary for door locks to operate properly. Because a locking system operation depends on your key to relieve the pressure, keep the bolt in position, and preserve security, most metal locks have some steel or metal spring. That stress is created by a spring. Compression devices have been employed for this function by locksmiths since the 1700s.
You can use a ballpen to visualize a compression spring. The pen can write with the tip exposed thanks to the spring, which then covers it inside the casing to keep its ink from drying. It enables the use of pens without their bulky, losable caps.
An example of a commercial application for compression springs is an oil rig. These springs play a significant role in controlling the pressure and maintaining it at ideal levels, which is essential to running an offshore oil rig.
Most airline travel could be difficult without using a variety of springs, possibly even more so than with cars. The hinges on an aircraft might not be visible; however, you can be certain they are there. Air turbines, engine controls, guidance systems, meters, wheels, fuel cells, diesel engines, and brakes are just but a few elements in a plane that need springs.
As you may expect, mechanical compression springs are used in several medical equipment applications. You might not be aware of the wide range of medical equipment that employs springs, from small springs such as those used in inhalers, syringes, and pill dispensers to several diagnostic tools.
Additionally, there are springs for various medical devices, including catheters, valves, wheelchairs, peristaltic pumps, endoscopic devices, staplers, surgical, orthopedic, and other tools.
Once more, whenever you consider tension, you should choose compression springs. Consider the effort required to make an arrow and bow work. The crossbow becomes a much simpler weapon if you remove the human element and replace it with the compression spring.
Current semi-automatic handguns use the spring to take in recoil energy and afterward re-direct that to move the bolt or slide and reload your weapon for the next shot. That's another example of how technology is progressing.
One of the major benefits of compression springs is their ability to prevent the motion of another part. This feature makes a tiny compression spring a crucial part of the gauge's inner construction and operation. You pump the gauge's media under pressure in a hollow tube that tries to straighten out as it fills.
A gear and connection attached to the little compression spring are pushed by the tube due to the pressure. The spring's reluctance and pushing back all impact the pressure indicator needle's location.
The indicator tip wouldn't spring back into position to indicate the pressure level being measured if the spring didn't force back on the pressured component.
The majority of compression springs are made of inexpensive metals like steel. Such metals are widely accessible and reasonably priced. Since they contain less metal, tension springs are one of the most affordable solutions for any application.
It's a crucial advantage. Other springs with bigger ratios of slenderness can operate more efficiently in significantly more stable situations, thanks to tapered springs. The springs' ratios decide whether they will bend or buckle when properly deflected. Conical compression prevents them from buckling by springing off lateral stability.
These springs are sturdy and prevent the compressor from suffering serious harm.
Compression springs are surprisingly light compared to the force they can generate. The spiral steel makes the spring harder than the metal could be if it maintained its original linear shape. The metal is strengthened by heating and cooling, requiring less material to withstand larger loads.
Another benefit highlights how important and regularly used compression springs are in the presence of door latches on both car and building doors. For the best grasp of how a spring works, picture raising a doorknob to unlock a door.
If you use the action without moving the door wide open, the locking mechanism's spring will return to the closed position. By pulling on the gadget or twisting it, you can squeeze the spring; if the device holds its position, the spring will remain compressed; if not, it will lock once more.
Compression springs don't need to be maintained. The spring doesn't need to be lubricated, cleaned, coated specifically, or undergo any other maintenance to work. The sole drawback of springs is the potential for breakage occasionally. A faulty compression spring can be easily replaced, though.
Some of these benefits might not surprise you; one of them might pique your curiosity about compression springs. Because they offer a unique combination of benefits, springs are undoubtedly the best alternative for the usage of every size across all industries and hundreds of varied, specialized uses.
Contact us today and learn more about how compression springs, they could help your application!

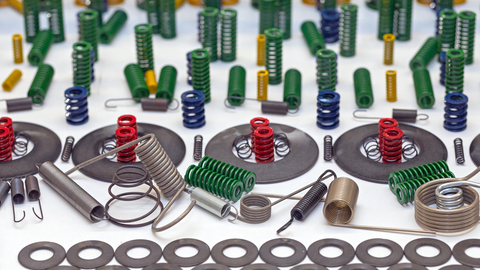

Springs are crucial components employed in industrial, commercial, and private working frames to deliver torsion, compression, or tensile force. They have numerous applications ranging from engine valves and holding batteries in place to opening die sets, which is just the tip of the iceberg regarding their usage.
Springs can be defined as resilient or elastic mechanical tools whose primary function is to push, pull, wind, support, lift, protect or deflect when under load and still regain their original shape after use. They can also act as a store of energy.
There are many types of springs, and each kind serves unique purposes. However, springs can be placed into two categories: coil or non-coil. Both types are typically made from a single strand of metal woven into a spiral or coil design. Although most coils share the same helical structure, some differ from others due to specific qualities.
Generally, the spring type depends on the force or torque the user needs and its application. Compression springs and die springs might seem similar, but they have their share of differences, and today we will know what they are.
These are the most popularly used springs in the industry since they have a wide range of applications. The springs are woven into a spiral pattern with an open coil design that helps oppose compression along the wind axis. It's a reasonably standard spring configuration that can work independently. It gets its name from the spring’s action under load or force; pitch is applied between coils to store energy during use. Once the weight is taken off, the stored energy is released, and the spring regains its original shape.
GL Metal wire diameters for making compression springs range from 0.006 to 1.250 inches. Compression springs are applied in various industries that require bouncing actions. Here are a few examples: automotive engines, most electronic devices, push buttons, some home appliances like lawn mowers, mechanical parts and medical devices, among other things. Applications that require minimal solid height and higher surge resistance frequently use conical style springs.
GL Metal draws along the lines of specific parameters to create compression springs that are up to code and deliver the highest quality measure.
Rate: Spring rate is the alteration in force per unit deflection in Newtons per millimeter (N/mm).
Stress: The deflection and load requirements determine the amount of stress the spring can withstand. When load or force is applied to a compression spring, it's stressed, and the stress is more significant at the surface of the spring. Once the spring is deflected, the force shifts, creating various operating tension. The greater the functional stress level, the minimal the maximum stress required to attain comparable life.
External Diameter: This refers to the cylindrical envelope diameter formed by the external of the spring coils.
Hole Diameter refers to the space in which you can place a compression spring. Most people mistake this space for the dimensions of the spring itself rather than the dimension of the compression spring to the mating part. Therefore, it should be wider than the compression spring’s external diameter while considering expansion and tolerance under load.
Rod Diameter: This is the rod's dimensions that pass through a compression spring. The rod is used as a guide shaft to reduce the risk of spring buckling when subjected to force or weight. It's supposed to be smaller than the compression spring’s internal diameter while considering tolerance: but it should not be too small; otherwise, it will lose the ability to reduce spring buckling.
Die springs are strong helical springs made from rectangular wire and carry about 30% more load for a similar deflection value compared to regular compression springs. As the name suggests, die springs get their name from popular applications in the press die sets industry. Punch press sets put pressure on the material holding it in place as the machine perforates the substrate. They are primarily applied in situations with minimal space as they store more energy in limited spaces: the amount of energy stored is greater since more material can be placed into the allotted springs.
Oil hardened steel or chromium alloys( chromium-vanadium or chromium silicon) is used to make die springs. The chromium layer helps maximize corrosion resistance and wear. It also enhances dimension accuracy while working at high temperatures. The metals allow for a cover of vinyl coating to be applied.
A paint or color coating is applied to die springs to indicate the amount of load they can hold. Unfortunately, there is no standard set or uniform color code for all manufacturers; therefore, you will require a reference card or color list from the manufacturer. Depending on your chosen manufacturer, the colors range from light to difficult load applications.
Parameters for Designing Die Springs
· Free length: This is the measurement of a die spring before it's under load.
· Hole diameter: This is the spring’s external diameter of the spring and also the maximum spring width under compression.
· Rod diameter is the rod's dimensions that pass a compression spring.
· Elastic limit: The maximum pull or push the spring can take before tearing or deforming.
The two springs share one thing in common: both use compression force to work; other than that, they are entirely different. Whereas compression springs are made out of a single metal strand in a spiral pattern, die springs are made out of stronger rectangular and oil-hardened alloys. This feature allows die springs to hold more load and store more energy than general compression springs.
However, this affects the distribution of stress due to the die springs' rectangular sections, but on the other hand, it stores more energy than compression springs. Compression springs feature uniform distribution of stress because of their spiral pattern.
Likely, you have come across any of the two springs, especially the compression spring, as it's used in many industries. Venturing into the spring world can be challenging, but this article will help you understand the differences between two of the most commonly used spring types. GL Metal offers a wide variety of high-quality springs and metal products with experience natured over more than 20 years, meaning it's the right step for you.
