Machines That are Used to Make Metal Springs

Views:157 Author:Site Editor Publish Time:2023-11-14 11:21:23 Orgin:Site
share

Metal springs are critical to numerous industries, starting from the automotive and aerospace sectors to medical devices and electronics. In manufacturing metal springs, special machines are used which can produce different sizes and shapes of springs in a fast and accurate manner. In this all-inclusive overview, we will be looking at spring-making machines in-depth, their capabilities, advantages, and future trends shaping this industry.

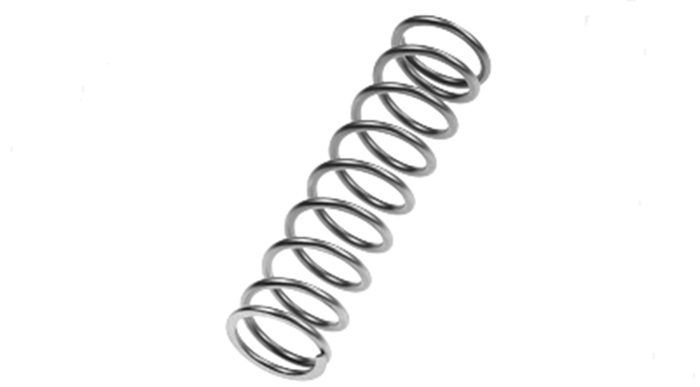

metal springs.png


CNC Spring Machines

CNC (Computer Numerical Control) spring machines are the leading-edge in spring manufacturing technology. These machines have notably brought about an impressive fusion of accuracy and versatility. By using computer-aided design (CAD) programs as well as computer-controlled manufacturing (CAM), CNC spring machines can produce springs with outstanding levels of accuracy.

Through this machine’s operation, a wire is fed into a rotating mandrel while cutting tools shape it into the form of a spring desired. This guarantees consistent quality, excellent repeatability, and minimal material wastage.

This is besides the fact that CNC technology allows for swift tuning and variations of spring dimensions/specifications, making them suitable for use in quick prototyping or where there are frequent design changes.



Mechanical Coilers

When the manufacturers are dealing with high-volume production, they turn to mechanical coilers. These machines produce thousands of springs quickly, thus improving productivity. The manufacturing industries can produce a larger number of springs in less than an hour when using mechanical coilers.

They shape the wire into the required spring shape using rotating mandrels and cutting tools. Such machines can work on wires of different sizes as well as compositions, which makes it possible for them to make springs with specific specifications that match those of a given factory. Mechanical coiling units excel at delivering uniformity in terms of their spring’s dimensions and shapes; this is very crucial for industries that have prescribed measures.



Multi-slide and Four-Slide Machines

Multi-slide and four-slide machines are used for making complicated springs with intricate shapes. They are used for shaping wires in designs that require complex bending, coiling, and forming since these specialized devices apply many slide tools.

They are widely used in industries that require springs having specialized geometries, such as electrical connectors and small mechanical components. These machines allow control of more than one sliding tool. This means of production permits the fabrication of complex spring shapes like double-torsion springs, clock springs, and extension springs with custom-made hooks and loops.

Multi-slide and four-slide machines are advantageous as they can manufacture springs with multiple bends and intricate geometries in just a single production process. No more need for other post processes, increase productivity, and maintain constant quality.



Spring End Grinders

These play a key role in perfectly finishing the ends of metal springs. They mainly focus on grinding the ends of compression springs, which results in equal length, squareness, and parallelism.

Spring end grinders cut off extra material from the ends of springs using either grinding wheels or abrasive belts to help realize accurate dimensions along with a smooth surface finish. The precise control of spring end grinders allows for consistent results, enhancing the overall quality of produced springs.

Spring end grinders are essential to industries that require a tight tolerance and accurate spring performance when it comes to automotive suspension systems, valve springs, and industrial machinery. The precision grinding process ensures the normal operation of springs, thereby maximizing their durability and reliability.



Automated Spring Assembly Machines

Once springs are produced, they often need to be assembled into larger components or devices. Automated spring assembly machines streamline this process by efficiently inserting and securing springs into designated positions within an assembly.

These machines can be programmed to handle different types of springs as well as various assembly requirements. It is an automated process that eliminates manual labor, thus reducing human error, increasing productivity, and ensuring consistent quality.

They find use in many sectors, such as the automotive industry, electronics industry, and medical device manufacturing, among others. This helps in the fast and efficient assembly of complicated components, which shortens the overall production time and reduces costs.



Wire Forming Machines

Wire-forming machines are a range of broad machinery designed for the production of springs. They process the various types of springs in use across industries and, therefore, offer production from manual through to high levels of automation.

On the other hand, the manual wire-forming machines are quite flexible, allowing skilled operators the required freedom in the development of elaborate and custom springs alike. Through the hand manipulation of the wire, delicate designs and differences in dimensions can be obtained.

Opposite to more automatic machines, the manual wire forming machines take slower production times but they are best placed at the uniqueness of the springs that occur in specialized applications.

Fully automated wire-forming machines are on the other end of the spectrum and can produce springs remarkably perfectly and speedily at the same time. These machines employ state-of-the-art robotics and computer-induced processes in shaping wires into a consistent nature of standard specification springs. Since these machines are totally automated over time, they have proved to be exceedingly productive and offer reduced labor costs as well.



Wire Drawing Machines

This is the basic process of preparing raw materials for the spring manufacturing process. In this mechanism, wire is drawn through these machines to reduce its diameter as per needs and requirements.

The wires are then pulled through a series of dies, systematically and carefully reducing the wire to the specified diameter. This careful first step is essential in guaranteeing that the material meets the specifications necessary. This will be important later in the subsequent production of springs.

It is a precise process where preciseness plays a very critical role in the determination of the quality and functionality of the springs. Systemically reducing wire diameter, these machines contribute to uniformity and consistency, which is very important for quality springs.



Tempering Furnaces

The tempering furnaces steal the show as we proceed further in the spring manufacturing journey. The hardening process is a crucial stage since it imparts specific mechanical characteristics to springs, such as hardness and resilience. Tempering furnaces optimize the metallurgical structure of coiled springs through controlled heating and cooling cycles.

These ensure that temperature spikes are limited during the course of treatment for coils, transforming their internal structure. As a result, this optimization improves the overall performance and durability of the springs while ensuring they meet numerous stringent requirements.



Electroplating Machines

For improved functionality and aesthetics of springs, electroplating machines play an important role. These machines apply a thin layer of metallic coating onto the surface of springs. This involves immersing the spring into a solution with metal ions and using electric current to facilitate the deposition of metal coating on them.

The electroplating process serves two primary purposes; firstly, it greatly increases their corrosion resistance against harsh environmental conditions that might damage or affect them in any way. Secondly, applying a metal coating enhances the aesthetic appeal of the springs, making them suitable for various industries where both functionality and appearance matter.



Shot Peening Machines

Shot peening machines play an important role in strengthening and hardening springs. They bombard the surface of springs with small metal beads. The effect is to compress the surface, thereby enhancing resistance to stress corrosion and fatigue strength.

Shot peening becomes very significant where there are cyclic stresses. This process ensures that springs are made more reliable with elongated life spans while maintaining their performance under repeated loads.



Spring Testing Machines

Quality assurance is a must for spring manufacturing, and spring testing machines help achieve it. With these machines, manufactured springs are evaluated mechanically, whereby parameters like load, displacement, and fatigue life are measured.

By carrying out comprehensive tests, manufacturers can ensure that the produced springs meet and exceed the required standards in terms of quality and specifications. This detailed examination guarantees that these devices serve well with respect to dependability as well as in the applications they were meant for.



Wire Straightening Machines

Wire straightening machines have an important function in attaining evenness prior to entering coiled wire into the spring manufacturing process. Straightening is a critical step in obtaining consistent dimensions in the final spring product, which highly determines overall quality.

These devices lay the foundation for subsequent manufacturing processes by removing irregularities from the wire. The uniformity achieved at this level is important for the production of springs with specific specifications and compliance with tough quality standards.



Automated Sorting and Packaging Machines

After testing and manufacturing processes, automated sorting and packaging machines streamline the logistics of the final product. These machines pack and categorize the manufactured springs according to their technical characteristics. This process automation does not only increase efficiency but also ensures that springs are ready for distribution or use.

Automation in sorting and packing leads to a smooth process without errors, thus reducing reliance on human labor as well as the chance of inaccuracies during sorting and packing. This effectiveness is vital because many industries rely on these precise parts.



Coiling Machines for Extension Springs

Extension springs require tailored coiling machines. Such machines have the advantage of providing precision control over the tension and length of extension springs that meet the end-user specifications.

Extension springs are mostly employed in instances where there are specific tension and length requirements. Specialized coiling machines are good for such purposes, making spring manufacturing adaptable and capable of satisfying diverse industrial needs.



Robotic Handling Systems

Robotic handling systems are fitted into the spring manufacturing plants to embrace automation. For example, these systems can do material handling, load or unload parts and even transfer components from one production stage to another.

By integrating robotic systems into the process, efficiency is improved significantly, which reduces reliance on human resources and narrows down the chances of mistakes. This automation enhances productivity through optimal flow between different production stages.



Laser Marking Machines:

In spring manufacturing, laser marking machines are used in inscribing identification marks, part numbers or any other information onto the surface of the spring in order to ensure traceability and assist with quality control. This comprehensive marking ensures traceability throughout the product lifecycle.

Laser marking is part of quality control as it helps a manufacturer verify and follow each spring right from production to where it will be used. By having such accountability, the manufacturer is able to make sure that indeed quality assurance has taken place right from manufacturing to the end use of the procured product.



Pros of Machine-Made Springs

Spring production using machines has got a lot of advantages over the traditional manual means. Firstly, the machines achieve a great deal of control over tapering ratios and pitch diameters, among other dimensions, due to high accuracy and precision. The computer-controlled machines reduce human errors and guarantee some consistency in pre-determined dimensions, tolerances, or what amount out satisfactorily regarding other desired specifications.

Secondly, the machines facilitate quicker times of production and a higher level of output overall. The programmed machines are able to make springs faster than manual labor while cutting time. This is particularly helpful for industries that need great amounts of fast or any other short-timed project.

The Machine-made springs are also more cost-effective as the process of manufacturing reduces the amount of material that gets wasted. The use of CNC technology and mechanical coilers, amongst other specialized machines, ensures low material scrap and, hence, maximum direct material-to-raw material ratio.



Future Trends and Innovations

The making of springs continues to witness so many changes courtesy of technology. New technologies are being realized, and existing ones are refined and improved in ways that enhance productivity, effectiveness, and quality in the making of springs.

The application of artificial intelligence (AI) and machine learning (ML) has turned out to be a game-changer for upcoming advancements in spring-making machines. The application of AI with ML algorithms helps the data to process in order to make real-time adjustments in the process of manufacturing to garner optimum out of it.  Hence, the technique helps in precision, reduces potential wastage, and increases further productivity, too.

Sustainability enhancement is another area of development in spring production. Many manufacturers have begun adopting greener approaches, such as conserving energy, using environmentally friendly materials, and having recycling systems. The design of the spring-making machines has been made in a manner that incorporates efficiency in the usage of power, hence reducing its environmental impact.



Wrap Up

To sum up, the role that metal springs play in the whole process is immense especially when it comes to achieving accuracy, consistency as well as faster operations. From CNC spring machines, mechanical coilers, multi-slide machines, and spring end grinders, all these equipment have their specific roles with regard to manufacturing.

These machines have several benefits, including accuracy, increased productivity, lesser waste, and sustainability. With more advancements in technology, there will be more innovative and efficient machines in the future for use in making springs.
