Understanding Helical Compression Springs

Views:51 Author:Site Editor Publish Time:2024-01-26 17:45:54 Orgin:Site
share

Helical compression springs are key in various industries like machines, automobiles, medical devices, and aerospace. These resilient components store mechanical energy and release it to maintain force, absorb shock, and ensure that many other applications operate smoothly.

Let's take a look at helical compression springs complexities through their structure, types, applications, and considerations one has to make when looking for quality designs.

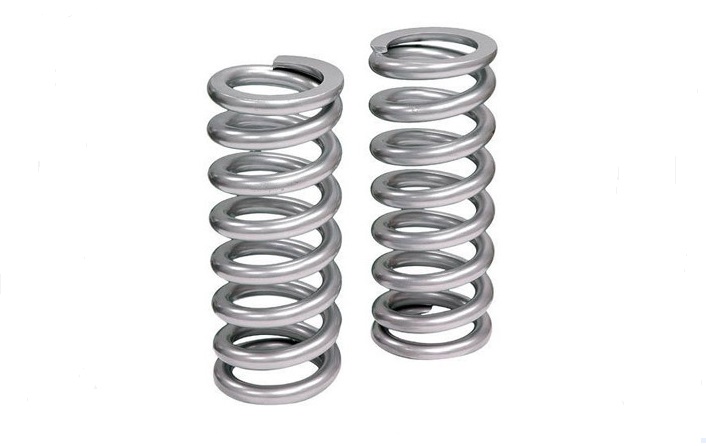

compression springs.png


What Are Helical Compression Springs?

Commonly referred to as coil springs, helical compression springs are elastic mechanical devices that tightly wound helical coils. This spring type is often made from metals or plastics capable of withstanding compressive forces.

The helical compression spring absorbs energy into its coils when subjected to compressive load. Once the load is released, the spring returns to its original shape, releasing stored energy.



The Structure of Helical Compression Springs

They can be found in different shapes and sizes, ranging from those used in micro-electronics to bridge foundational dampers in large industries. Their efficiency in storing mechanical energy and their natural strength make them suitable for various products and uses. Below is the variety of stuff that gang up to build helical springs. Read on:


 1. Coil Diameter:

The diameter of the coil is a significant factor determining the circular shape it takes in the formation of coils, which defines the overall size of the spring and its ability to handle a variety of loads.

 2. Wire Diameter:

The wire diameter measures how thick the wire is used in making the coils, which greatly influences both strength and flexibility, thereby impacting the capability of springs to carry out compression forces.

 3. Pitch:

The pitch is defined as the distance between one coil and another, directly impacting how compressible, expandable, or flexible a given spring is.

 4. Ends:

Two ends are connected by a helical spring, each having different shapes required by specific applications. They can be closed or open ends or may have some sort of hooks or loops for other purposes.



Types of Helical Compression Springs

So, you’ve entered the helical compression springs realm and are not looking for just any spring; instead, you want that perfect match to the task at hand. These come with different looks, roles, and placements. Knowing the types is your intel for choosing the right spring for your needs.

Here's the lowdown:


 1.  Compression Springs

Kicking things off with the classics – compression springs. These workhorses are designed to take on compressive forces like a pro. Picture them resisting the pinch and shaking off the squeeze with coils in shapes as varied as conical, hourglass, or barrel. Where do you find these bad boys? Everywhere – from automotive to furniture, medical devices, you name it.

They're the go-to for resistance and a direct application of force under tension to oppose compression along a linear axis. Stick them around holes, over rods, or shafts, and watch them do what they must.

 2.  Extension Springs

Now, we shift the gear to tension – and enter the extension springs. They are the rebels who refuse to budge away from tensile forces. Unlike the compressing ones here, the springs have tight coils with loops or hooks at the ends. What do they do? Store energy when pulled, and when that external force lets go, they snap back, bringing components to their neutral position. Automotive Interiors, Trampolines, Garage Doors – everywhere this tension warrior.

 3. Torsion Springs

A twist to gear up for you are torsion springs. The energy-storing champions when there is a twisting or rotating movement around their axis. Think of them as the torque maestros, exerting a proportionate force in the opposite direction. And where do they thrive? Door hinges or garage doors, industrial overhead doors, even into the delicate tick-tock of the mechanical watches. These torsion springs provide smooth moves and firmness for all kinds of mechanisms.

 4. Spring Guides

Now, spring guides coil pipes or cable sheaths. They are the lean and mean support machines that add flexibility to a project. These are long and thin helical compression springs that come in handy when there is a need for the repair of plastic tubing, the operation of control cables, and even the regulation of bike brakes.

Do you have any idea where to find precise guidance and support? These guides have your back always.

Understanding the characteristics and applications of each type is essential in playing the helical spring game. When dealing with timeless compressions, rebellious extensions, twisty torsions, or useful guidance, you must know their strengths to choose wisely who will play for you.



Applications of Helical Compression Springs

These types of springs have many uses across multiple industries and fields. They are versatile and can store mechanical energy, which makes them integral to many products and machines. Some common applications for helical compression springs include:

1. The automotive sector

2. Manufacturing and Machinery

3. Medical Devices

4. Consumer Products

5. Aerospace and Defense

6. Construction and Infrastructure

Many industries use helical compression springs in different ways. They can support varying loads, resist compressions, and store energy, which makes them crucial for different industrial uses.



Factors to Consider when Choosing the Best Helical Compression Springs

Where most folks go wrong is just buying random helical compression springs just as long as they are springs. The thing is, those springs are application-specific. So, you need to consider the details below carefully.

1. Materials: Ensure you choose the material that meets the needs of your product in terms of its strength, resistance to corrosion, resistance to temperature as well as durableness. Helical compression springs are usually made of stainless steel, carbon steel, and alloys for standard materials.

2. Wire Diameter and Coil Diameter: Wire diameter and coil shall be opted for your application in consideration of handling load requirements. Thicker wire diameter and larger coil diameter enhance strength and improve resistance against compressive force.

3. Ends to Use: After knowing the requirements of a certain application, the proper type of end should be determined. Closed ends will have applied stability with protection, and open ends will provide flexibility with attachment convenience. Sensory connections can also stay secure by using hooks or loops.

4. Tolerance and Precision: Find a manufacturer who guarantees the dimensions, tolerances, and specifications to be precise and uniform. Such springs will perfectly do and fit satisfactorily in any system where required.

5. Prototyping and Customization: Get engaged with a manufacturing company where these springs have better customization options that are inclusive of design prototypes to ensure testing of the design. This will serve to improve their performances and functionality to fit their use.
