Coil Compression Springs Manufacturing Process

Views:213 Author:Site Editor Publish Time:2022-06-27 10:19:24 Orgin:Site
share

A creative touch is needed in the spring production. Manufacturers employ various methods to produce symmetrical springs that maintain their form over extended periods and preserve their capacity to store energy and absorb shocks.

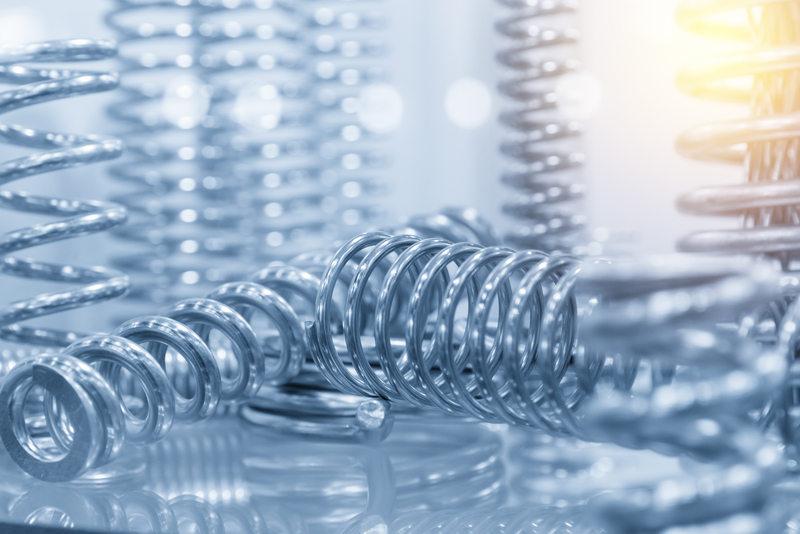

The most prevalent kind of spring is the compression spring, used in everything from pens to automobile engines. Manufacturers typically trim the cable at both ends for simpler installation in applications, and their comparatively straightforward helical construction comprises a loose wire coil to absorb shocks effectively. These springs self-compress to take in and store the energy; they don't release it until the pressure is removed.

Making a superior spring requires three key components:

1. Suitable design

2. Optimum material selection

3. Correct and accurate production



Coiling



The wire is first put through a procedure of straightening. The coiler will generate better parts if the wire is straighter when it gets in the coiler. Coiling machines come in various designs, including NC control, cam control, lathe control, and others. These machines produce material in coils.

Precision adjustments are made to the spring's free length, coils, and pitch during this operation using preprogrammed CNC machinery to alter the arms and arbores. A high-speed camera records images as the machines create the spring, allowing manufacturers to measure each component and make changes as necessary to keep it within the standard. The product then moves on to alleviating stress after the machine splits the spring off its wire.

Stress relieving



Once manufacturers create a spring, it usually needs to go through a stress-relieving procedure to keep its memory. The spring can recover due to that memory when it is under pressure. Companies must heat treat produced springs to achieve this. The substance of the wire is stressed during the coiling process, making it brittle.

Experts fix it by heating the springs in an oven, which causes the coil to solidify in its desired form and generate metallic links. For a predefined time frame, the oven maintains the temperature of the wire coil at the proper level before slowly allowing the coil to cool.

The goal of heat treatment is to provide the best spring properties. The spring material determines the heat treatment method. It would help if you annealed small springs at low temp (cold forming spring). Conveyor belt furnaces and chamber furnaces are two types of heat treatment systems.

The spring travels along the oven's conveyor belt at a velocity that enables it to remain there for the required period. The manufacturers transfer the spring to a reception box to cool after removing it from the oven.

Grinding



You can grind coil and compression springs if the design specifies it. The spring's edges are flattened during the grinding process so that you can position it vertically and stand upright without swaying.

A spring is given this treatment, which involves grinding both sides, to achieve perpendicularity and avoid load buckling and eccentricity. If the wire diameter is smaller than 1mm, there usually isn't much of an issue with accuracy with no ground.

A spring grinder is used for spring grinding. Manufacturers use two horizontal grinding wheels in this machine, separating them from one another so that the spring's length can pass between them. The spring is held and carefully moved between both grinding wheels by a different device called the spring dish.

The spring's ends are ground down as the plate travels by coming into contact with the grinding wheels, resulting in at the end facing parallel to the spring's sides. The spring dish then discharges the spring inside the receiving box.

Shot peening



A finish used on cold-worked springs is called shot peening. Spherical rounds are fired at the wire during this procedure, causing compression stress and the formation of layers of compression dimples.

The material's face hardens, as a result, increasing its resistance to fatigue, cracking, and corrosion.

To strengthen the spring's fatigue strength, which receives loads frequently such as valve springs and cracks throughout its lifespan of multiple flexings, the procedure is carried out before setting after manufacturing.

It involves striking tiny metal balls against the face of springs. This process strengthens the steel to avoid metal fatigue. A flurry of small steel balls bombards the spring's whole surface, smoothing it out and compressing the steel just under the surface.

Coating



The kind of coating known as powder coatings is applied as a free-flowing, dry powder. The fundamental distinction between a traditional liquid paint and powder coating is that the solvent needed to maintain the filler and binder components in a liquid suspension form is not present in a powder coating.

The coating is normally electrostatically deposited, and after being heated during curing, it flows and forms a "skin." The thermoset polymer or thermoplastic is present in the powder. It is typically used to produce a hard, more durable finish than regular paint.

Another choice for wire spring coatings is powder coating. Hot-drawn springs typically have powder coatings put on them to stop rust from developing on the spring's face.

For aesthetic purposes, coatings may also come in a variety of hues.

As an option, the spring is submerged in a highly charged liquid during electroplating, which will cause the plating metal to rust and not the spring. The spring receives a negative electrical current. A source of the plating metal is also submerged in the solution and given a positive electrical charge.

As the plated metal disintegrates in the fluid, positive charged molecules are released that are drawn to the negatively charged spring and form a chemical bond there. Carbon steel springs should be roasted at 325–375°F (160–190°C) for 4 hours soon after being electroplated (less than 4 hours) to prevent brittleness.

Packaging



Spring quantities can be bulk-packaged in plastic bags or cartons. To reduce damage or spring tangling, alternative packing designs have been created. They might be placed in a tube, individually packed, strung on wires or rods, attached to the sticky paper, etc.

Take away



Note that there's no set procedure for the process of coil spring production. Due to the usage of spring, quality requirements, production facilities, and much more, the manufacturers might alter or modify the process order.
